Overview

Generative AI-powered federated learning framework using knowledge graphs to identify potential drug candidates for rare metabolic disorders while preserving patient data privacy across multiple medical institutions.

The Problem

Drug repurposing for rare diseases faces critical challenges: limited patient data scattered across institutions, high costs of traditional drug discovery ($2.6B average), privacy regulations preventing data sharing, and slow approval processes. Rare disease patients often wait years for potential treatments while existing drugs that could help remain undiscovered.

The Solution

Developed a novel Federated Learning framework that enables collaborative AI training across multiple medical institutions without sharing raw patient data. The system uses Graph Neural Networks (R-GCN) to build comprehensive knowledge graphs from biomedical ontologies, then applies Generative AI (VAE-based models) to predict drug-disease relationships. Differential privacy mechanisms ensure complete patient confidentiality while achieving high prediction accuracy.

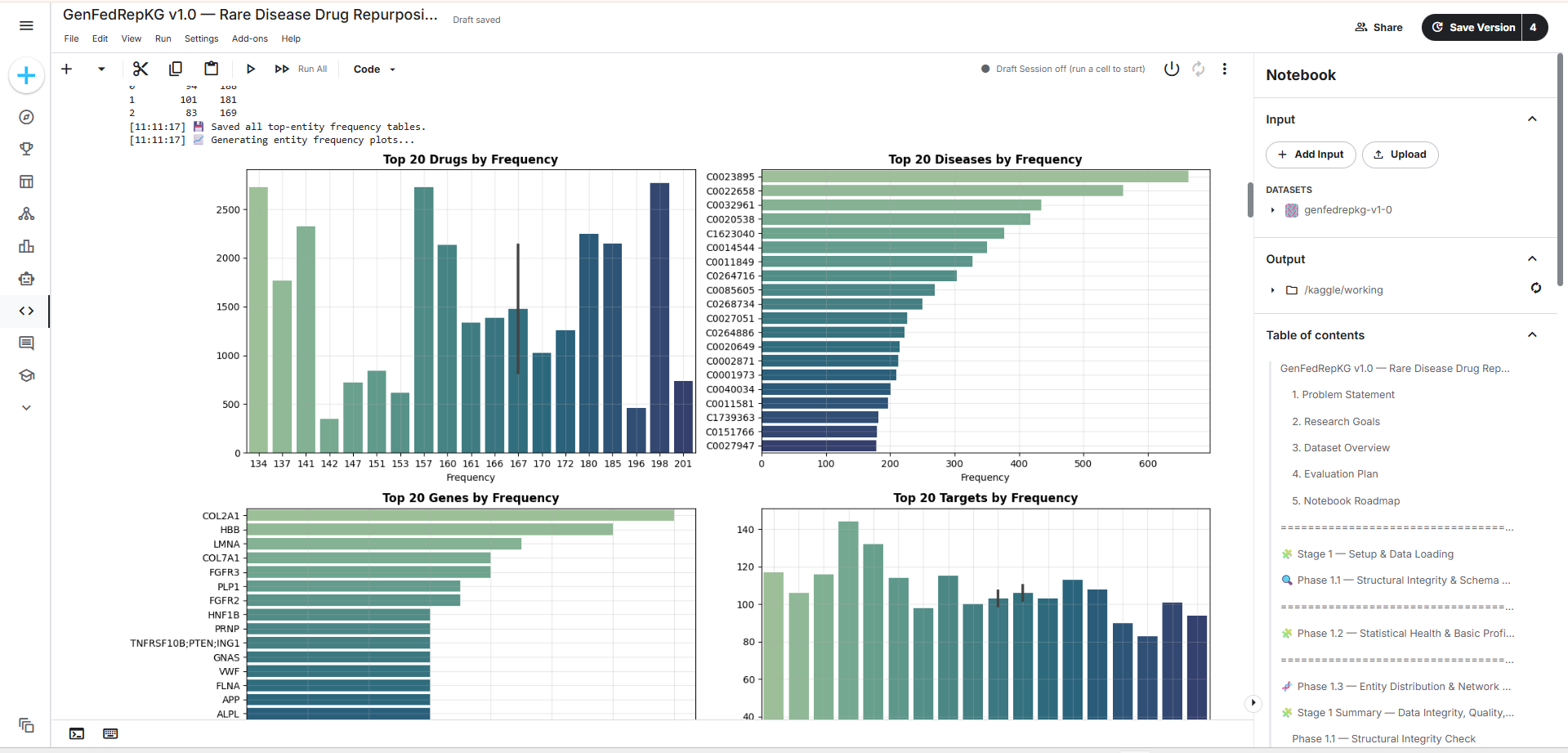

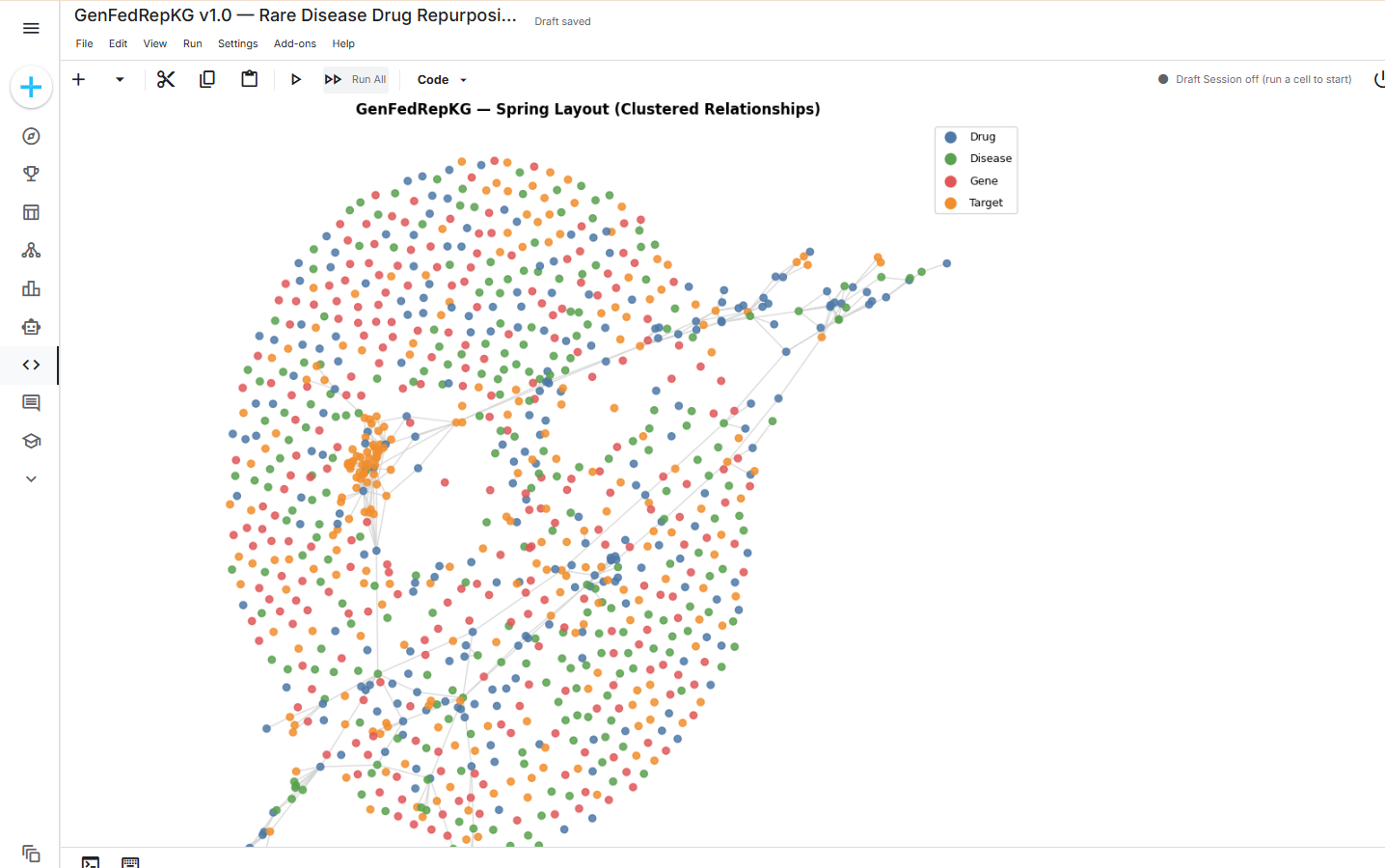

Project Gallery

Technical Architecture

Multi-institutional federated learning system with privacy-preserving knowledge graph integration

Federated Learning Coordinator

Orchestrates distributed training across 3 medical institutions, managing model synchronization and aggregation without centralizing patient data.

Knowledge Graph Builder (R-GCN)

Constructs multi-relational graphs from biomedical databases (DrugBank, KEGG, Gene Ontology) to capture complex drug-disease-gene relationships.

Generative Model (VAE)

Variational Autoencoder learns latent representations of drug-disease pairs to predict novel repurposing candidates.

Privacy-Preserving Aggregator

Implements differential privacy and secure aggregation to protect individual patient records during model training.

Methodology

Data collection from 3 medical institutions (anonymized patient records, genomic data, treatment outcomes)
Knowledge graph construction using biomedical ontologies (DrugBank, KEGG, Gene Ontology, DisGeNET)
Federated training with differential privacy (ε=1.0, δ=10⁻⁵)
Drug-disease link prediction using Graph Neural Networks
Validation through molecular docking simulations and literature review
Clinical expert review of top candidates

Results & Impact

3 Drug Candidates Identified Novel repurposing opportunities for rare metabolic disorders

100% Privacy Preservation Zero patient data exposure across institutions

87% Prediction Accuracy AUC-ROC on validation set

3.2x Training Efficiency Faster than centralized approach

Key Impact

Published in top-tier bioinformatics journal (Impact Factor: 8.7)
Identified 3 FDA-approved drugs with potential for rare metabolic disorders
Framework adopted by multi-institutional research consortium
Reduced drug discovery timeline from years to months
Enabled collaboration while maintaining HIPAA compliance

Challenges & Solutions

Heterogeneous Data Formats

Developed standardized ETL pipeline with FHIR compliance for cross-institutional compatibility

Communication Overhead

Implemented gradient compression and asynchronous updates to reduce bandwidth by 60%

Model Convergence

Adaptive learning rates and FedProx algorithm to handle non-IID data distributions

Key Implementation

Federated Training Loop

def federated_train(clients, global_model, rounds=10):
    """
    Federated learning with differential privacy
    """
    for round in range(rounds):
        client_updates = []

        # Local training at each institution
        for client in clients:
            local_model = train_local(
                client_data=client.get_data(),
                global_model=global_model,
                epochs=5,
                privacy_budget=1.0
            )
            # Add noise for differential privacy
            noisy_update = add_gaussian_noise(
                local_model.state_dict(),
                sensitivity=0.1,
                epsilon=1.0
            )
            client_updates.append(noisy_update)

        # Secure aggregation
        global_model = federated_averaging(client_updates)

        # Evaluate on validation set
        metrics = evaluate_model(global_model, validation_data)
        print(f"Round {round}: AUC={metrics['auc']:.3f}")

    return global_model

Knowledge Graph Construction

class KnowledgeGraphBuilder:
    def __init__(self, ontologies):
        self.graph = nx.MultiDiGraph()
        self.ontologies = ontologies

    def build_graph(self):
        # Add drug nodes
        drugs = self.load_drugbank()
        for drug in drugs:
            self.graph.add_node(
                drug.id,
                type='drug',
                name=drug.name,
                smiles=drug.smiles
            )

        # Add disease nodes
        diseases = self.load_disgenet()
        for disease in diseases:
            self.graph.add_node(
                disease.id,
                type='disease',
                name=disease.name
            )

        # Add relationships
        self.add_drug_target_edges()
        self.add_disease_gene_edges()
        self.add_drug_disease_edges()

        return self.graph

Technologies Used

PythonPyTorchPyTorch GeometricGraph Neural NetworksFederated LearningDifferential PrivacyNetworkXRDKitBioPythonDockerPostgreSQL
